Broadcast 500W FM Transmitter
500 Watts FM Transmitter
Affichage de 17–32 sur 33 résultats
-
-
EL600D 600W Digital FM Transmitter
EL600D 600W Digital FM Transmitter
600W FM Exciter ( 250W/Mono/MPX/Stereo)FM transmitter Compact Eletec 600 Watt exciter with Mono and MPX input
-
1 kW FM Mono / MPX / Stereo Transmitter
Broadcast 1,000W Compact Fm Solid State Transmitter
The Eletec Broadcast F1000 is a top specification FM broadcast transmitter. Advanced Audio Quality exciter. High quality 1 kW FM Stereo Synthesized FM exciter.
1000 Watt FM Mono /MPX / Stereo Transmitter1kW Transmitter FM Broadcast Medium Power Compact for Radio
-
1kW FM Modular Transmitter 1000 Watt
1k FM Modular Transmitter 1000 Watt F1000/E
Broadcast Transmitter 1 kW Mono/MPX/Stéréo
Technical features:
Frequency Range: 87.5 ÷ 108 MHz (76 ÷ 88 MHz on request)
Type: Full Solid State Mos-Fet-Wide Band
Modulation: FM
Emission Class: F3E
VCO Tuning: 25 MHz
Frequency Stability: ± 2.5 ppm
Synthesizer Step: 100 KHz (10 KHz on request)
Power Output: 0 ÷ 1000 W
Spurious Emission: < – 80 dB or better
Harmonic Emission: < – 60 dB
Stereo Separation: > 55 dB @ 1 KHz
Distortion: < 0.1 % (TYP. 0.06%) @ 1 KHz
Base Band: 30 Hz ÷ 60 KHz within 0.15 dB
Unweighted S/N Ratio: > 80 dB (30Hz ÷ 15KHz 50μS RMS)
Asyncronous AM S/N Ratio: > 65 dB Ref. 100% AM 400 Hz
Syncronous AM S/N Ratio: > 65 dB with FM @ 75 KHz @ 400 Hz
Pre-Emphasis: 50 or 75 μS int. selectable
RF Out Connector: 7/16″ Female
MPX Input Connector: BNC-F
MPX Input Impedance: 2 KOhm
SCA Input Connector: 3 BNC-F
Protections: Overload, Temperature, VSWR in a fold-back reducing power
Cooling: Forced air
Op. Temperature Range: 0 ÷ 50 °C
Maximum Umidity: 95 % non condensing
AC Supply: 110 ÷ 264 VAC – 47 ÷ 63 Hz
Dimension: 3 unit rack 19″, 530 mm depth
Weight: 18 kg
-

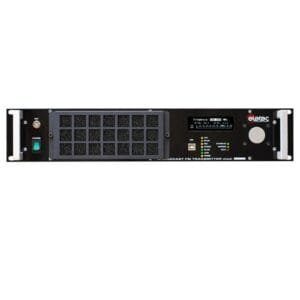

EL1200D 1200W – 1,2kW Digital FM Transmitter
Fm Broadcast Transmitter 1200W – Fm Radio Exciter Transmitter
-
1500W exciter fm transmitter mono/Mpx or stereo
FM Transmitter 1500w Compact LCD
1500w Fm Transmitter
-
-

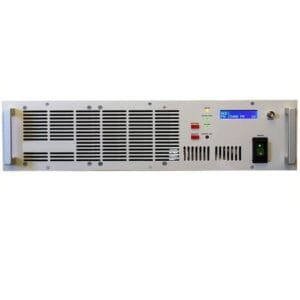

2 kW Solid State FM Transmitter
FM Broadcast Transmitter 2 kW
2,000 WATTS COMPACT FM SOLID STATE TRANSMITTER
The Broadcast Eletec FAL2000 is the most compact size 87.5-108 MHz 2kW FM Transmitter, high efficiency, solid state FM transmitter of 2000W rated power. With advanced self protection and LCD digital front panel control features., the FAL2000 is a 19″ rack mount FM Transmitter, with last transistor technology.. -
-

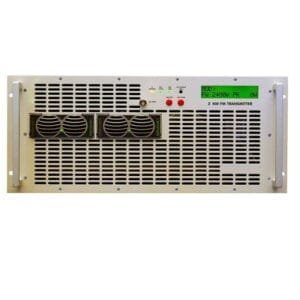

Broadcast EMC2500 2,5Kw FM Transmitter
Broadcast 2,500W Compact Fm Solid State Transmitter
The Eletec Broadcast EMC2500 is the latest model serie available in only 6RU, with extractable power supplie.
High performance FM Transmitter 2500W (2,5kW) air-cooled, new type with power supply plug-in, it is the most compact high power transmitter perfect for your station!
Eletec take this opportunity to inform you that we are introducing two new product lines ,which I think may be of great interest to all broadcaster’s -
-
-
-
-
-
