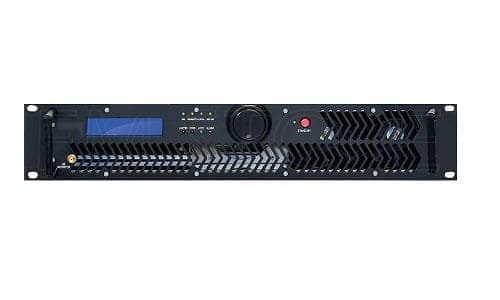

FM Transmitter 1600W fa1600
The new 1600 FA serie is the compact 1600W transmitter, The new exciters, Fa 1000/1600 series, are realized with technology ICEFET, that allows drastic decrease of the temperature
to a sensitive reduction of the consumptions and this family is a system of total quality thanks to a diagnostic
remote, fast and capillary assistance, low consumptions, duration in the time and it is easy to use.
Ultra-compact and ultra-light (only 13 kg). Aluminium chassis, in 2 rack unit only.
Pressure encoder provides great accessibility for user/device interaction, resulting in extreme of use. Configuration software offers a simple,
intuitive interface.
The ALC (Automatic Level Control) and Foldback protection ensures enhanced business continuity under any operating conditions.
All components of the series shared the same characteristics to the RF module, power supply, logics of control, systems of protection, derating,
facility of installation and simplicity of setup
The advantages of the module systems are as follows:
• All technological improvement on the basic product is directly transferred on the apparatuses of the series.
• Automatic diffusion of the knowledge and maintenance
• Interchangeability and independence of the each module base
• Common parts of exchange on the whole series
The system of the power supply switching by PFC, high effi ciency, logic proportional protection without interruption of the operation, predisposition for
telemetry.
The new line of FM transmitters launched by Quark, “Simply Fet”, are characterized of an important effi ciency refi nement; in fact, with regard to
RFpart, it passes 83% and the entire performance of the transmitter is 76%.
These products also involves a low environmental impact and it is aimed at high energy saving
Optionals
ASE/EBU: digital audio input (XLR)
TCP/IP: remote control
Addictional air filter on the front
Addictional SCA imput
TECHNICAL FEATURES FA 1000 FA1600
Frequency range 87.5 – 108 MHz
Low-pass filter Band 87.5 MHz – 108 MHz
Corrosion All the mechanical parts are in aluminium
Measure point Monitor RF
Visualized parameters More than 50 visualized parameters on display LCD
Setting parameters operation From the frontal panel through encoders and LCD
CPU yes
Redundant fans yes
Transistors ICEFET
Type of transistors @1000 W MRF6VP5600 @1600 W MRF6VP61K25
GENERALS
Rated output power 1.000 W 1.600 W
Modulation type Direct carrier frequency
Operational Mode Mono, Stereo, Multiplex
Environmental working conditions -10 °C to +50 °C / 95% relative Humidity non condensing
Frequency programmability From software, with 10 kHz / 100 kHz steps
Frequency stability WT from -10 °C to 50 °C +/- 1 ppm
Modulation capability 150 kHz Stereo, 180 kHz Mono / MPX
Pre-emphasis mode 0 μS, 50 μS (CCIR), 75 μS (FCC)
POWER REQUIREMENTS
AC Power Input
AC Supply Voltage 230 +/- 15% VAC
Active Power Consumption 1330 W 2050 W
Overall Efficiency Typical 70%
Connector Cable
MECHANICAL DIMENSIONS
Phisical Dimensions L x H x M 440 mm x 85 mm x 500 mm
Weight About 13 Kg
AUDIO INPUTS
Left / Mono & Right 10 kOhm or 600 Ohm (XLR F) Level: -3.5 to 13 dBu (optional -13 to +13 dBu)
MPX 10 kOhm or 50 Ohm (BNC) Level: -3.5 to 13 dBu (optional -13 to +13 dBu) @ 75 kHz FM
SCA / RDS 10 kOhm (2x BNC) Level: -8 to +13 dBu @ 75 kHz FM
AES / EBU (OPTIONAL) 110 Ohm (XLR F)
OUTPUTS
RF output 50 Ohm (7 / 16” EIA flange type)
RF Monitor 50 Ohm (BNC) approx. -60 dBc
Pilot output >5 kOhm (BNC) approx. 1Vpp
FUSES
Internal fuses on main line n° 2 fuse F 16 T – 5×20 mm
COOLING SYSTEM
Different temperature of the air in entrance / gone out 15 °C
Type of cooling Forced air
ENVIRONMENTAL CONDITIONS
Temperature (working) – 20° + 45 °C
Temperature (not working) – 20° + 70 °C
Umidity (working) 95% a 40 °C
Umidity (not working) 90% a 65 °C
Altitude (working) > 3.000 meters
