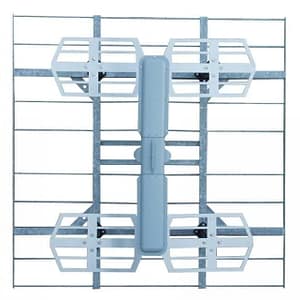

Two Bay 8-Panel UHF TV Antenna Omnidirectional for 1KW – 5KW TV transmitter
ELECTRICAL SPECIFICATIONS
Frequency Range:470~860 MHz
Impedance : 50Ω
VSWR : ≤1.1（470-760M）
≤1.2 (760-860M)
Gain : ＞12 dBi
Polarization : Horizontal or Vertical
Non-circularity : ≤±3 dB
Horizontal 3dB Beam Width
Maximum Input Power : ＞1 KW
Lighting Protection : Direct Ground
Connector Place : Central Section
Connector : 7/16 DIN Femail
MECHANICAL SPECIFICATIONS
Dimensions : 1035×480×203 mm
Rated Wind Velocity : 60 m/s
Operating Temperature: -50℃～70℃
Mounting hardware : Ø152 mm
Radiating Element Material :Aluminum Alloy
Reflector Material : Aluminum Alloy
Radome Material : Fiberglass
Radome Color : Red、White
