DAB/DAB+ Transmitters

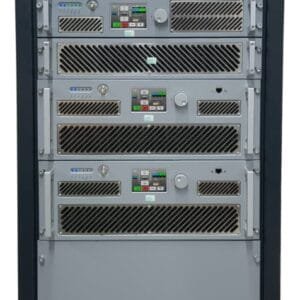

2KW – 2000W Dab Transmitter

Dab transmitter 2000W – 2 kW

500 W Dab Transmitter

DAB Transmitters 600W NEWS !! COMING SOON NEW DAB+TRANSMITTER   Eletec transmitters are the state of art for digital signal processing and RF performances. These high-quality parameters are due to: Digital Adaptive Precorrection (Linear and not linear) The modulation parameters are optimized for every working condition 9thHV-Generation Doherty LDMOS devices Only this category of devices…

Compact 500W DAB Transmitter

DAB Broadcasting

COMPACT 500W Dab Transmitter

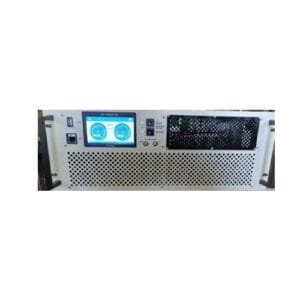

ODMD Super compact Multi-channel DAB/DAB transmitter 3 channels in 1 RU
ODMD shifts paradigm in multichannel DAB/DAB transmitters
Up to now, the simultaneous broadcasting of 3 separate DAB ensembles from the same site implied a bulky combination of modulators, power amplifiers, SFN adapters, channel filters and combiners. ODMD wipes all that stuff away from your sites, at a fraction of the cost you can expect from traditional equipment.
Into a single 3RU chassis, ODMD provides you with up to 3 complete DAB/DAB /T-DMB transmitters with independent input, signal processing engine, DAB modulation stages, and an ultra-linear “common mode” 500W high efficiency Doherty amplifier. The generated channels are combined at low level, allowing broadcasters to avoid, in case of operation on adjacent channels, external RF combiners: the ODMD features just a single RF antenna connector, requiring just a single band-pass filter.
The output power can be individually set per each of the channels in use to fit compliance requirements.
ODMD also supports individual SFN operation for each DAB/DAB emission, and features a built-in GPS receiver.
ODMD modular design allows you to buy and install just the number of transmitters you need: at any later stage you’ll be able to expand its capabilities.
Both the power amplifier module and the power supply unit included into the ODMD can be easily and individually replaced while the chassis is on its frame.
Designed for last-mile applications, ODMD saves footprint at transmitter sites and perfectly suits any low power broadcasting application, including road and railway tunnels coverage.
Main features:
• Compact 3U 19” Rack chassis
• Total output (common amplification) up to 500W rms
• High efficiency broadband amplifier technology
• DAB/DAB /T-DMB modulations fully supported
• Broadband adaptive pre-correction circuits
• 3 independent ETI inputs
• No need for external RF combiner for adjacent channels operation
• On-board high stability GPS / GLONASS receiver with battery
• SNMP, Web Interface and Touch Screen display

DAB 10000/L Radio DAB/DAB Transmitter 10 kW Liquid Cooling   Radio DAB Transmitters – Digital Audio Broadcasting Radio DAB Transmitters Extra Efficiency Supported standards: DAB, DAB Excellent MER over 33dB Very high efficiency Easy maintenance design Complete remote control: Web & SNMP Compatible with all major headend brands new radio DAB Transmitter is reaching the highest technology level in…
