Stl link antenna log 174-240 Mhz, Stl Link Antenna Log 230-470 MHz, Stl link Antenna Log 790-960 MHz, Grid Antenna 1.1 – 2.5 Ghz, Parabolic antenna
STL LINK Antenna Available in frequencies: 170-240MHz, 230-470Mhz, 790-960MHz
Showing all 9 results
STL Link Antennas Log 790-960 Mhz Frequency 790÷960MHz Impedance 50 Ohm VSWR <1,4 Gain 10dBi Front To Back Ratio >20dB Polarization V or H Light Protection All Parts Direct Grounded Rf Power 30W Connector NF Material Aluminium Number of elements 9 Lenght 630 mm Width 190 mm Weight 0,8 Kg Wind 130 Km/h

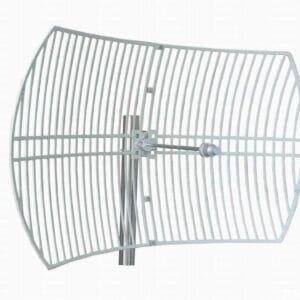

2.3-2.5GHz Grid Parabolic High gain parabolic antenna .suited to all microwave studio to transmitter STL link systems. Frequency: 2300-2500 Gain: 24dBi VSWR: <1,5 dB Impedance: 50Ω Polarization: Horizontal / Vertical Max power: 100W Connector: N female Dimension: 60×90 cm Weight: 3,6 kg Several Antenna system models for Radio, TV and Microwave applications and related accessories such as feeder cable, grounding kit, clamps, and others…
LOG 1.5 GHz radio link directive antenna LOG/1.5G – Technical parameters Frequency range 1100-1700 MHz Polarization Horizontal or Vertical Connector N female Maximum power handling capability 300 W Gain (at mid band, ref. to λ/2 dipole) 11.5 dBd Impedance 50 ohm Front to back ratio > 20 dB Wind load (ref. 150 Km/h) 11 Kg…
LOG 5 radio link directive antenna 470-860 MHz, broadband gain 10.5 dB. Logarithmic. Aluminium, N connector. Max.
LOG FM radio link directive antenna 87.5-108 MHz, broadband, gain 7.5 dB. Logarithmic. Aluminium, N connector. Max. power 100 W
LOG/2.5 GHz radio link directive antenna 1.8-2.5 GHz, gain 12.8 dB, broadband.

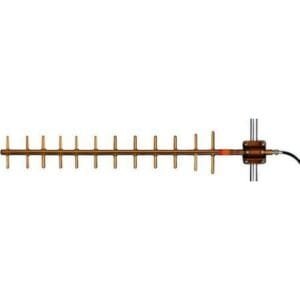

STL Antenna 1200-1700MHz A high performance antennafor use with STL links in the 1200Mhz – 1521 Mhz range Designed for STL systems in the 1200-1700 MHz range this Yagi directional antenna has 12 dBi gain and is made from sturdy aluminum for long term performance & reliability. All metal parts are DC grounded for…

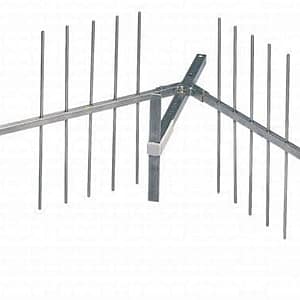

STL Link Antenna STL LINK VHF – UHF – SHF STL CORNER REFLECTOR VHF – UHF ANTENNAS, STAINLESS STEEL These STL Corner Antennas for VHF-UHF have High Gain, are completely demountable but strong because made in Stainless Steel. FREQ. BAND (Mhz) 200 – 250 300 – 360 380 – 530 IMPEDANCE (Ohm) 50…

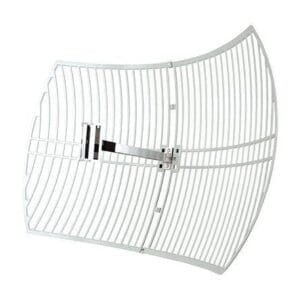

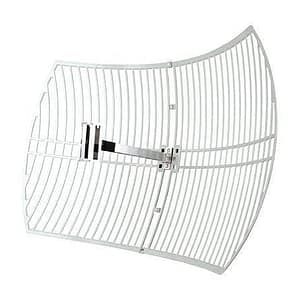

2.4GHz 24dBi Grid Parabolic Antenna Grid parabolic antenna is designed for the spread spectrum system, operates in the 2.4-2.5 GHz band and provides 24dBi directional operation. The surface design with welded-steel reflector to bring out the best performance. This antenna features high gain, long coverage, light weight, compact structure and excellent wind-resistance. It is used…
