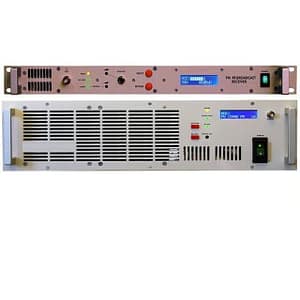

FM Radio Re-Broadcast Receiver
The FM Radio Re-broadcast Receiver Eletec offers state-of-the-art performance for FM reception quality. With its high sensitivity and large signal capability, the model is well suited even for harsh environments
FM Receiver for rebroadcast applications
Great performance in presence of strong electromagnetic fields
Band pass filter included
Front Panel IF monitoring
All Functions via LCD
Optional Remote Control Software
TECHNICAL SPECIFICATIONS
Frequency Range: 87.5 –108 Mhz
Modulation: FM Class F3
VCO Spectrum tuning: > 25 Mhz
Channel Spacing: 10 Khz
Tuning: Synthesized PLL
Frequency Stability: <2 ppm from -5° to 50° C ( 23° to 122° F)
RF input connector: “ N “ type
RF input impedance: 50 Ohms
Maximum RF input Signal: 0 dBm
Muting level selectable: – 100 dBm to 0 dBm (- 70 dBm standard)
IF Frequency: 10.7 Mhz
Sensitivity: 100 uV for a >68dB S/N; 10 uV for a >55 dB S/N
Selectivity: 40 dB @ ± 600 Khz
Base band: 25 Hz – 60 Khz @ ± 0.5 dB
S/N Ratio ( Stereo demod.): > 65 dB @ ± 75 Khz
Image frequency rejection (tuner filter): > 80 dB
2nd Adjacent channel rejection: 50 dB
MPX OPERATION
Output Connectors: BNC
Amplitude response: ± 0.07 dB (20 Hz- 60 Khz ; ± 0.5 dB ( 60 Khz – 75 Khz)
Stereo crosstalk: >40 dB
Total harmonic distortion: < 0.2 % @ ± 75 Khz
Earphone Impedance: 10 Kohms
GENERAL CHARACTERISTICS
Temperature Range -5° to 50° C (23° to 122° F)
Power Supply 240 VAC
Power consumption 50 W from AC
Dimensions 483 mm (19”) x 44 mm (1.74 “) x 365 mm ( 14-1/2” )
Packaged Weight 4 Kg ( 9 lbs)
