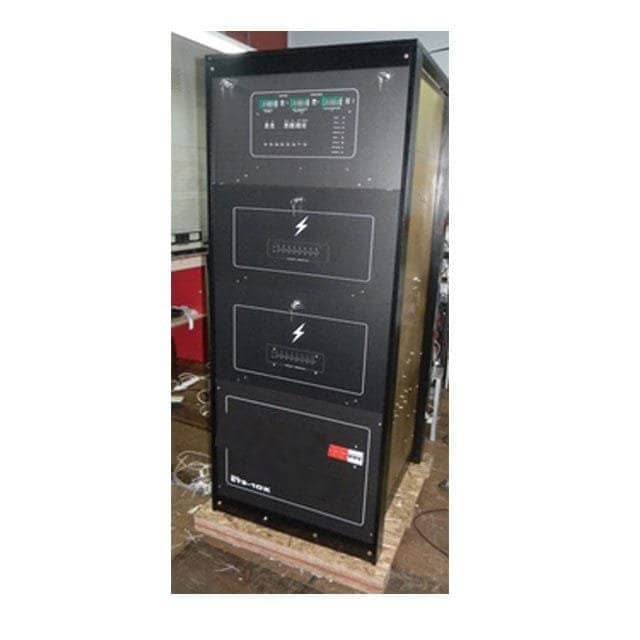

10 kW Solid State AM Transmitter
10 kW AM Transmitter, High power, solid state transmitters for AM radio broadcast
Compact Cabinet Steel 100% Solid State MOSFET Technology Modulation PDM Modular Architecture Power Modules connected PLUG-IN Power Modules 16 of 1,000 watts C / U Protections of all its parts with fault signaling. Output tank Lightning, lightning. Capacity 140% modulation in the positive peek. High efficiency, typically 80% or better. Excellent modulation characteristics and low distortion. Power control in 3 levels from the front panel. Measurement System Voltage, Current and Power, through Digital instruments. Temperature compensated oscillator. Automatic replenishment from the studios. Local Operating System and Remote. System forced air ventilation. Power supply single or three phase 220/380 vac Frequency Range any channel within the band of 530 Khz to 1700 Khz
10 KW Solid State AM Transmitter
