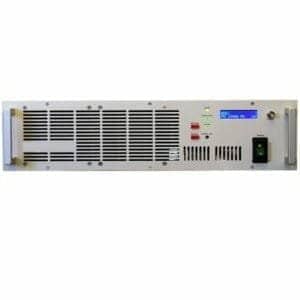

1 kW FM Mono / MPX / Stereo Transmitter
Broadcast 1,000W Compact Fm Solid State Transmitter
The Eletec Broadcast F1000 is a top specification FM broadcast transmitter. Advanced Audio Quality exciter. High quality 1 kW FM Stereo Synthesized FM exciter.
1000 Watt FM Mono /MPX / Stereo Transmitter
| FREQUENCY RANGE: MODULATION: EMISSION CLASS: VCO TUNING: FREQUENCY STABILITY: SYNTHESIZER STEP: POWER OUTPUT: SPURIOUS EMISSION: HARMONIC EMISSION: STEREO SEPARATION: DISTORSION: BASE BAND: UNWEIGHTED S/N RATIO: ASYNCRONOUS AM S/N Ratio: SYNCRONOUS AM S/N Ratio: PRE-ENPHASIS 50/75 µS : RF OUT CONNECTOR N-F: MPX INPUT: MONO INPUT: SCA INPUT: COOLING: TEMPERATURE RANGE: MAXIMUM UMIDITY: AC SUPPLY: DIMENSION: WEIGHT: |
87.5 ÷ 108 MHz FM F3E 25MHz ± 2.5 ppm 100KHz opz. 10KHz 0 – 1000 Watts < – 80 dB or better < – 70 dB > 55 dB @ 1KHz (typ. 60dB) < 0.1 % (typ. 0.06%) @ 1KHz 30 Hz÷60 KHz within 0.15 dB >80 dB (30Hz ÷ 15KHz 50 µS RMS) > 70 dB Ref. 100% AM 400Hz > 65 dB with FM @ 75KHz @400Hz Jumper selectable 50 Ohm BNC-F / 0dBm / -10dBm÷ 6dBm 2KOhm CANON / 0dBm / -10dBm÷ 6dBm 2KOhm 3 BNC-F / 0dBm / -10dBm÷ 6dBm 2KOhm Convection for RF PA and a little fan for inside 0 ÷ 45 °C 90 % 194 ÷ 260 VAC / – 47 ÷ 63 Hz 2 unit rack 19″, 360mm depth 12 Kg |
