2 kW Solid State FM Transmitter
2kW FM Stereo/Mono/MPX/Transmitter

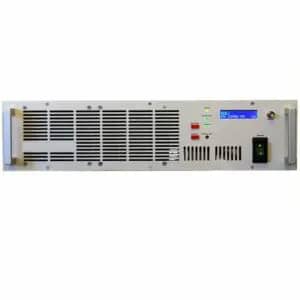

The Broadcast Eletec FAL2000 solid state VHF FM Transmitter is the most compact size, 87.5-108 MHz, 2kW FM Transmitter, high efficiency, solid state FM transmitter of 2000W rated power. With advanced self protection and LCD digital front panel control features., the FAL2000 is a 19″ rack mount FM Transmitter, with last transistor technology.
The Output power is adjustable from 0 – 2000 Watt. 2000 Watt FM Stereo Transmitter.
FM Broadcast Transmitter 2 kW
TECHNICAL SPECIFICATION
FREQUENCY RANGE: 87.5 to 108 MHz
MODULATION: FM
EMISSION CLASS: F3E
VCO TUNING: 25MHz
FREQUENCY STABILITY: ± 2.5 ppm
SYNTHESIZER STEP: 100KHz or otional 10KHz
POWER OUTPUT: 0 to 2000 Watts
SPURIOUS EMISSION: < – 80 dB or better
HARMONIC EMISSION: < – 70 dB
STEREO SEPARATION: > 55 dB @ 1KHz (typ. 60dB)
DISTORSION: < 0.1 % (typ. 0.06%) @ 1KHz
BASE BAND: 30 Hz to 60 KHz within 0.15 dB
UNWEIGHTED S/N RATIO: >80 dB (30Hz ÷ 15KHz 50 µS RMS)
ASYNCRONOUS AM S/N Ratio: > 70 dB Ref. 100% AM 400Hz
SYNCRONOUS AM S/N Ratio: > 65 dB with FM @ 75KHz @400Hz
PRE-ENPHASIS 50/75 µS : Jumper selectable
RF OUT CONNECTOR N-F: 50 Ohm
MPX INPUT: BNC-F / 0dBm / -10dBm÷ 6dBm 2KOhm
MONO INPUT: CANON / 0dBm / -10dBm÷ 6dBm 2KOhm
SCA INPUT: 3 BNC-F / 0dBm / -10dBm÷ 6dBm 2KOhm
COOLING: Convection for RF PA and a little fan for inside
TEMPERATURE RANGE: 0 to 45 °C
MAXIMUM UMIDITY: 90 %
AC SUPPLY: 194 to 260 VAC / – 47 ÷ 63 Hz
DIMENSION: 3 unit rack 19″, 360mm depth
WEIGHT: 13 Kg
2000 Watts FM Broadcast transmitter 87.5MHz-108MHz
