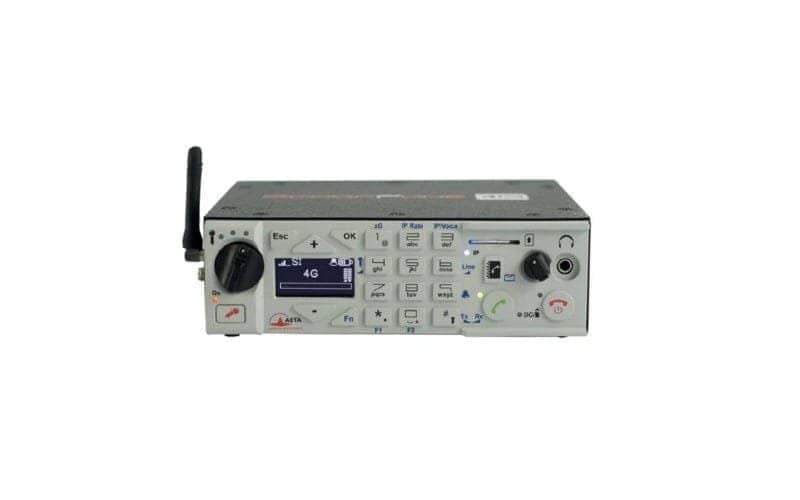

AETA SCOOPFONE 4G
SCOOPFONE 4G
SIMPLICITY
+Full Duplex
+Embedded HTML server for easy access to all parameters
+Network quality meters
+SIP or direct RTP
+Factory SIP account included
+Easy update by USB
+N/ACIP compliant (UER Tech 3326)
CONNECTIVITY
+AoIP over wired Ethernet and Wi-Fi
+AoIP over 3G/4G-LTE mobile networks
+VoLTE
+Mobile voice over 2G/3G networks with HD Voice™ (7 kHz)
+GPIO
SAFETY
+FEC for secure connection
+Remote Access : remote access and control via Internet
+Adjustable Opus bitrate (12-192 kbit/s), during communication with
no audio artefact, to fit bandwidth
+2 antennas for better network reception
+SNMP
+> 5H autonomy with rechargeable NiMH batteries (6xAA), integrated
charger
+Lockable power socket
AUDIO INTERFACES
+Best in class audio pre-amplification
+1 balanced mic/line input
+1 balanced line input
+1 balanced line output
+2 headphones outputs
+48V Phantom power
AUDIO INTERFACES
+1 balanced mic/line input (XLR 3 pins)
+1 balanced line input (XLR 3 pins)
+2 headphone outputs (1 jack, 1 mini-jack)
+1 balanced line output (combo 3 pins)
Mic / Line Inputs
+Selectable gain 0/16/32/48 dB + potentiometer
+Max gain: +70 dB
+Max input level: +19 dBu
+High-pass filter (50 Hz, 18dB/o)
+Limiter (-6 dBFS)
+48V phantom power
+4 selectable gains
Line Input
+Adjustable gain
+Clipping level: +4 dBu to +16 dBu
Line Output
+Adjustable gain (1 dB steps)
+Max level: +4 dBu to +22 dBu
AUDIO PERFORMANCE
+EIN < – 126 dBu @ gain max.
+THD+N < -78 dB
+Frequency response: +/- 0.3 dB (20 – 20000 Hz)
+Noise gate and echo cancelling
CONTROL AND SUPERVISION
+Embedded HTML server, and remote control via Ethernet/IP
+AETA Remote Access : remote control via Internet
+Transmission of digital I / O (GPIO) : 2 inputs, 2 outputs
+SNMP
NETWORK INTERFACES
+Ethernet 10/100BaseT IP / SIP
+VoLTE
+Integrated mobile access 2G/3G/3G+/4G: IP data mode, voice/HD Voice
+SIM card slot, two SMA antenna sockets
+SIP or direct RTP
+100% FEC: packet replication (standard or interleaving)
GENERAL
+Power 10–16 VDC or standard batteries
(6xAA-size)
+OLED screen
+Push/pull SIM card holder
+SMS
+Phone Book
+Dimensions: 158 x 134 x 48 mm (W x D x H, overall).
Rack mount version: 148x134x44 mm)
+Max weight 0.635 kg (batteries excluded)
+Max weight 0.804 kg (batteries included))
+Operating temperature range 0°– 45°C
