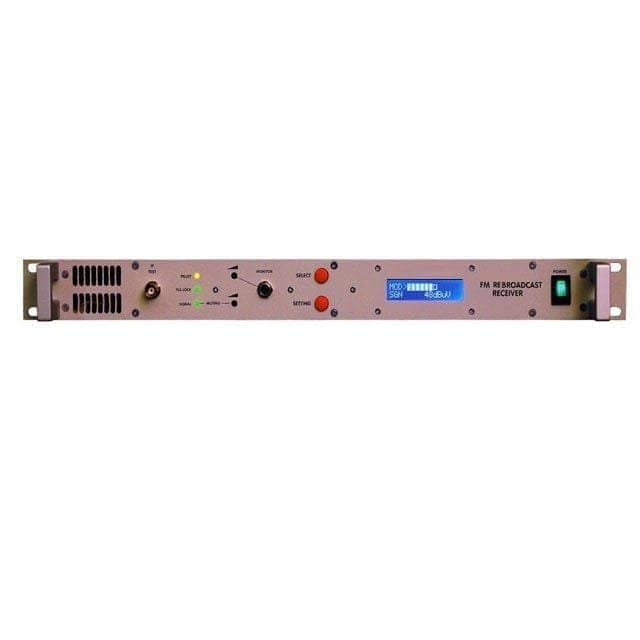

Broadcast FM ReBroadcast Receiver
The FM Rebroadcast Receiver Eletec offers state-of-the-art performance for FM reception quality. With its high sensitivity and large signal capability, the model is well suited even for harsh environments
Transport high quality stereo audio signals from the studio to the broadcast sites. Large selection of frequencies and power.
Long distance coverage.
FM Receiver for rebroadcast applications
Great performance in presence of strong electromagnetic fields
Band pass filter included
Front Panel IF monitoring
All Functions via LCD
Optional Remote Control Software
High fidelity FM Receiver 87.5-108 MHz Range
FM BROADCAST RECEIVER
TECHNICAL SPECIFICATIONS
FREQUENCY RANGE 87.5 ÷ 108MHz
CHANNEL ADJUSTMENT By means of two push buttons – with password
TUNING STEP 10KHz
ANTENNA INPUT LEVEL from – 80dBm to 0dBm without overload
ANTENNA CONNECTOR N-F 50 OHM
IF REJECTION > 90dB
FREQUENCY METER High Visibility LCD Digital Display
DEVIATION INDICATION High visibility LCD digital display
RAISE LEVEL MEASUREMENT dBμV INDICATION
FREQUENCY ACCURACY ± 2,5 ppm
IF BANDWIDTH 280 KHz ± 5% IF BANDWIDTH
SIGNAL/ NOISE RATIO 74dB @ 400Hz at 50μS
HARMONIC DISTORTION < 0.2%.
FREQUENCY RESPONSE ± 0.05dB 30Hz to 60KHz
STEREO CROSSTALK 40dB 100Hz ÷ 10KHz (typ. 45dB @1KHz)
OUTPUT CONNECTOR MPX BNC-F 2.2V PeP 30 OHM
MUTING Adjustable from -80dBm to -30dBm
MONITORING With headphone jack 6.3mm jack headphone jack level adjustment
AC POWER SUPPLY 110÷240V
DIMENSIONS 1H rack 19″ 38cm (D)
