FM Directive Antenna – EP3

Catégorie :

FM Directive Antenna – EP3

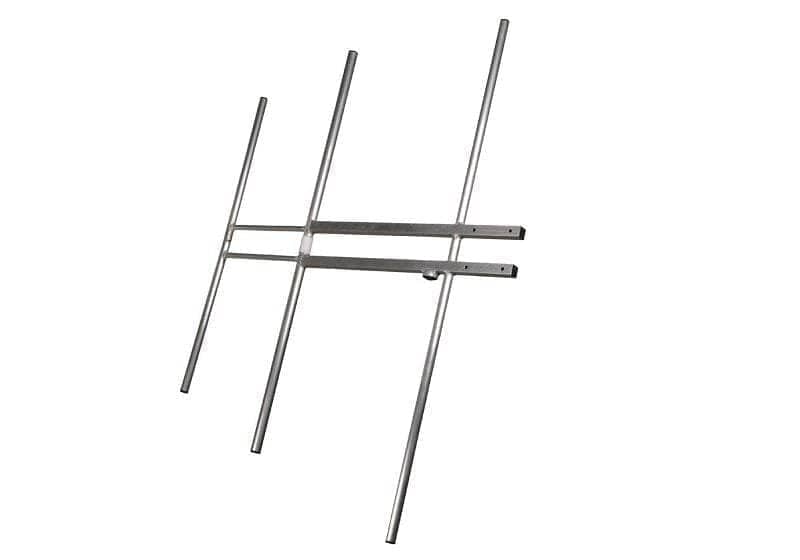

Broadband FM Directional Antenna / 3 elements Yagi 87.5- 108 Mhz
– Linear Polarization 3-element
– Broadband: Suitable for single channel or broadband operations with multi-channel combiners.
Easy Installation: The standard mounting brackets are designed for instant installation on poles with diameters from 32 to 90 mm. Special brackets are available upon request.
Water, icing, moisture protection: The input connector is protected against rain and icing by a special housing. The internal balun is also protected against water, icing and moisture by a sealed housing.
State of the art mechanical design: By employing the finest materials (stainless steel, non-corrosive aluminium alloy, marine brass, virgin PTFE) it is assured a longer life service.
Lightning resistance: is assured by the DC ground potential of the entire antenna.
Anticorodal 3-elements Yagi, 87.5-108 MHz broadband, 5.2 dBd gain. N connector. Mounting clamps and anodized aluminium accessories.
