Microwave Radio Link 1100-2700 MHz

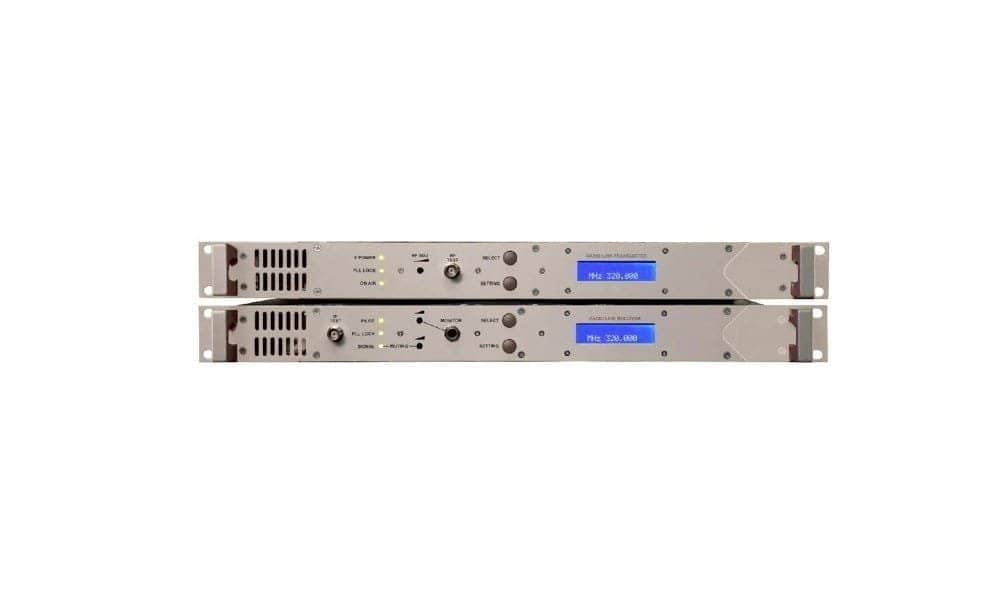

Microwave Radio Link TL1515 operate on the band range 1.100 – 2.700 GHz
Transmitter
- Frequency Range: 1100~2700 MHz -20MHz sub-band
- Type of Modulation FM Class F3
- VCO Tuning 25 MHz
- Frequency Stability ± 2,5ppm (Bettr 0n request)
- Synthesizer Step 25KHz
- Power Output 1 or 5 Watts
- Spurious Emission < -80 dB or better
- Harmonic Emission < -65 dB (-80 dB on request)
- Stereo Separation > 55 dB @ 1 KHz
- Distorsion < 0.2% (TYP 00.8 %) @ 1KHz)
- Base Band 30 Hz – 60 KHz within 0.15 dB
- Unweighted S/N Ratio > 72 dB rms at 30 Hz ~ 20 KHz
- Enphasis 50 or 75 ?S – selectable
- RF Connectors N-F 50 ohm
- Input Base Band Imp. 2 Kohm
- Input Mono Impedence 600 Ohm
- Cooling Forced air
- OP. Temperature Range 0 ÷ 45°C
- Maximum Umidity 90%
- AC Supply 100 ÷ 240 Volt; 47 ÷ 63 Hz
- Dimension 1 Units Rack 19″ 44 cm Depth
- Weight 6.8 Kg
Receiver
- Frequency Ranges 1500~2500 MHz – 20MHz sub-band
- Type of Modulation FM Class F3
- VCO Tuning 25 MHz
- Frequency Stability ± 2.5 ppm (Better on request)
- Synthesizer Step 25KHz
- Image Rejection 60dB Typ.
- RN Noise Figure 6dB or lower
- Stereo Separation > 45 dB @ 1 KHx
- Distorsion < 0.5% (TYP 0.2 % @ 1KHz)
- Base Band 30 Hz – 60 KHz within 0.08 dB
- S/N Ratio > 72 dB with 0.2 mV input (Typ 78 dB)
- Deenphasis 50 or 75 ?S int. selectable
- RF Connectors N-F 50 ohm
- B. Band-IF Conn. BNC-F
- Base-Band Imp. < 30 ohm
- Cooling Forced air
- P. Temp. Range 0 ÷ 45°C
- Maximum Umidity 90%
- AC Supply 100 ÷ 240 Volt; 47 ÷ 63 Hz
- Dimension 1 Units Rack 19″ 44 cm Depth
- Weight 6.2 Kg
