STL Link Antenna

STL LINK VHF – UHF – SHF

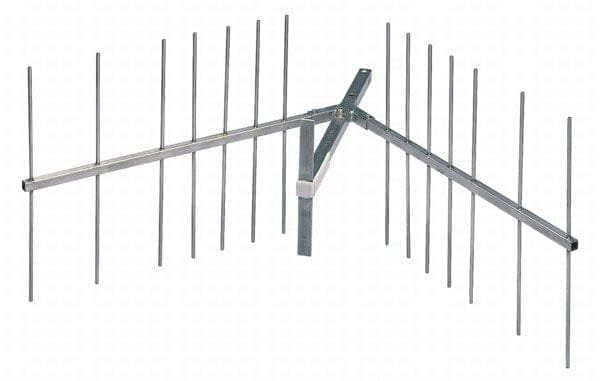

STL CORNER REFLECTOR VHF – UHF ANTENNAS, STAINLESS STEEL

These STL Corner Antennas for VHF-UHF have High Gain, are completely demountable but strong because made in Stainless Steel.

FREQ. BAND (Mhz)	200 – 250	300 – 360	380 – 530
IMPEDANCE (Ohm)	50	50	50
V.S.W.R.	< 1.4:1	< 1.4:1	< 1.4:1
GAIN (dBd)	9	9	9
CONNECTOR	N	N	N
MAX POWER (W)	500	500	500
POLARIZATION	Vertical/Horizontal	Vertical/Horizontal	Vertical/Horizontal
WEIGHT (Kg)	12	8.8	7.1
DIMENSIONS (cm)	215x130x100	145x95x70	114x75x50

PARABOLIC ANTENNAS SEMIPROFESSIONAL, MADE IN ABS UV RESISTANT

Parabolic antenna semiprofessional, light but very strong, entirely made of ABS material UV resistant and stainless steel clamps and screws. Designed for link point to point connection in SHF band or W-lan WI-FI. The antennas are completely closed ( radome ) and so insensitive to weather, snow and ice. They may be mounted in vertical or horizontal polarization. The most used are the 86cm with 24dBi Gain, but they are available also in other model

FREQ. RANGE (Mhz)	2300-2500	2300-2500	5470-5900	5470-5900	5470-5900
IMPEDANCE (Ohm)	50	50	50	50	50
V.S.W.R.	< 1.8:1	< 1.8:1	< 1.8:1	< 1.8:1	< 1.8:1
OPENING ANGLE ( -3db )	13.5°	10°	6°	5°	5°
RELATION F/B (dB)	> 30	> 30	> 30	> 30	> 30
GAIN (dB)	21	24	28	31	31
CONNECTOR	N	N	N	N	N
POWER (W)	50	50	50	50	2×50
POLARIZATION	Vert./Horiz.	Vert./Horiz.	Vert./Horiz.	Vert./Horiz.	Vert./Horiz.
DIAMETER (cm)	62	86	62	86	86
WEIGHT (Kg)	5	10	5	10	10
