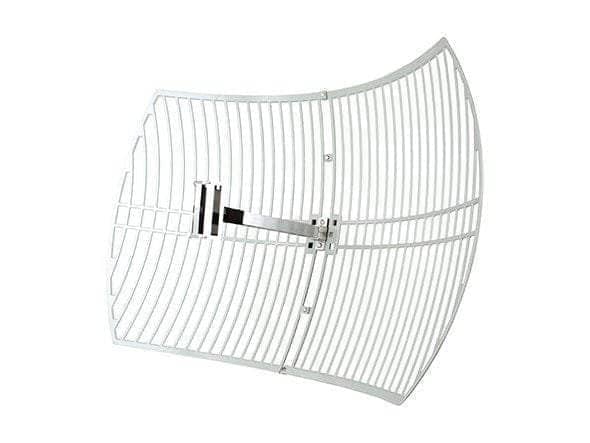

2.4GHz 24dBi Grid Parabolic Antenna
Grid parabolic antenna is designed for the spread spectrum system, operates in the 2.4-2.5 GHz band and provides 24dBi directional operation. The surface design with welded-steel reflector to bring out the best performance.
This antenna features high gain, long coverage, light weight, compact structure and excellent wind-resistance.
It is used for outdoor and the range is up to 56 km.
•24dBi directional operation, ideal for extraordinary long-distance outdoor directional connection
•Weather proof design, suitable for all weather conditions
•N Female connector, applicable in most outdoor solutions
•Provides easy installation mounting kits
Easy To Use
Installation is simple and straight forward.
ANTENNA
Dimension 1000mm x 600mm
Weight 3.5kg
Frequency 2.4GHz
Gain 24dBi
VSWR(MAX.) 1.5:1
HPBW/H( °) 10
HPBW/V( °) 14
Polarization Linear; Vertical
Type Directional
Connector Type N Female(Jack)
Extended Cable/Length 30cm
Mounting Pole Mount
Application Outdoor
Approximate Range at 1/11/54Mbps 56km/31.5km/4.44km
Operating Temp. -40℃~60℃(-40℉~140℉)
Storage Temp. -40℃~60℃(-40℉~140℉)
Package Contents 24dBi Grid Parabolic Antenna
Installation mounting kits
User Guide
