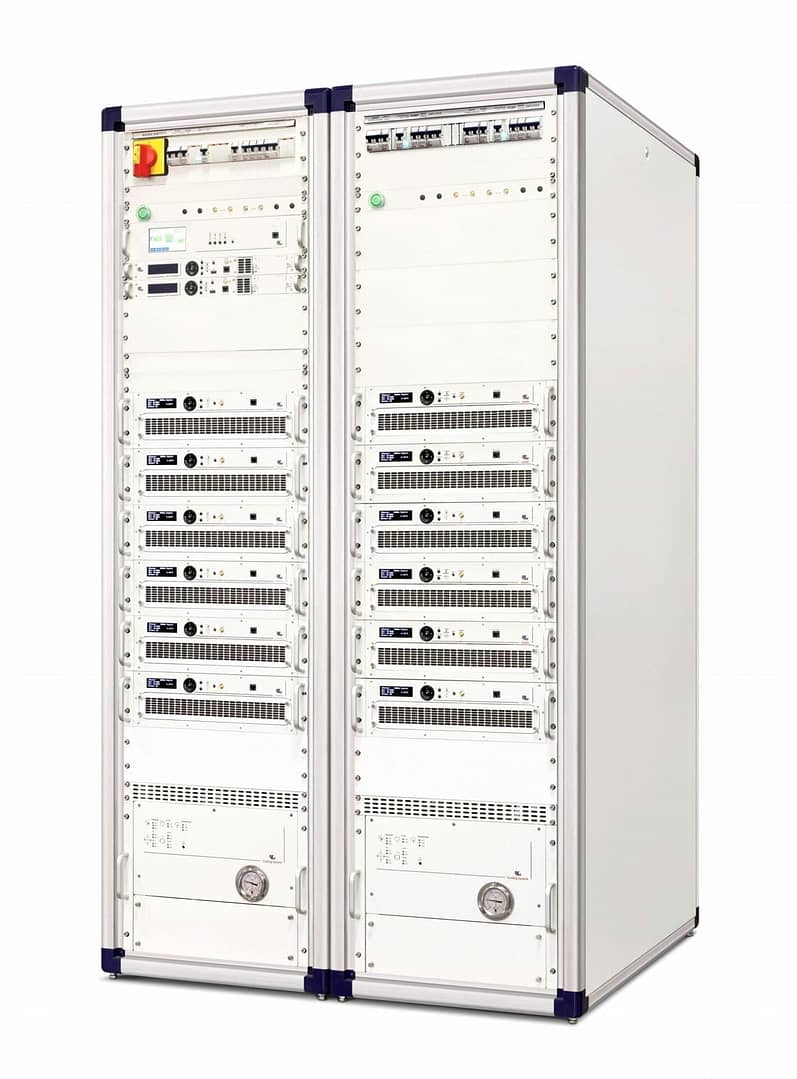

FM TRANSMITTER 60kW
High power 60000 W Broadcast FM Transmitter
Inputs: L&R, MPX, AES-EBU and MPX over IP audio inputs. External RDS, 1 pps and 10 MHz inputs
The most fully featured HD Sound FM transmitter ever, digital processing completely based on FPGA technology granting crystal clear and highly stable audio performances.
Single Frequency Network: an optional GPS receiver, an extremely precise built-in OCXO, backed by a proprietary SW sharpened by years of on-field tests, allows the realization of FM Single Frequency Networks, where the interference area can be totally managed
- DSP/DDS based modulator
- Fully frequency agile without need for any tuning or trimming.
- Hot plug in PSU
- FM Repeater and Transposer (optional)
- GPS receiver with extremely precise OCXO (optional)
- Built-in Dynamic RDS Encoder
- USB input to fast save/load configurations
- Built-in GPS for SFN application (optional)
- Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts
- High efficiency up to 78% to minimize consumption and OPEX
