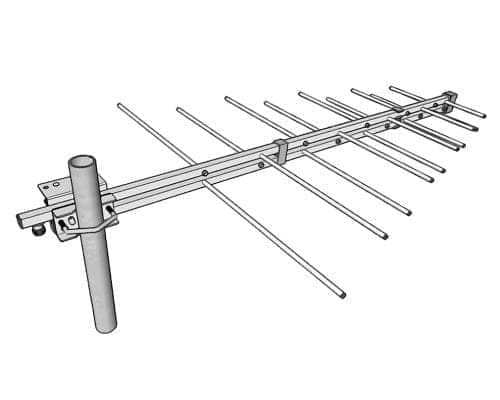

RADIO LINK LOG ANTENNA 230÷470MHz
Frequency: 230 ÷ 470MHz
Impedance: 50 ohms
VSWR: <1.7
Gain: 8dBi
Front to back ratio: > 20dB
Polarisation: Vertical or Horizontal
Shock Protection: All parts direct earth grounded
RF Power: 30W
Connector: NF
Material: Aluminium
Number of elements: 10 all removable
Length: 1050mm
Width: 660 mm
Weight: 1,2 Kg
Wind resistance: 130 Km / h
