Affichage de 49–72 sur 160 résultats
-
-
10kW FM broadcast radio transmitter range
10kW FM broadcast radio transmitter range Frequency range: Type of transistors: Output RF connector: Input RF connector: IN/Output Impedance: Harmonich suppression: Power gain: Residual asyncron AM: Threshold of ROS by software: Threshold of ROS fast hardware: General stability of the output power: Efficiency: Permissible voltage variation: Operating temperature range: Permissible relative humidity: Maximum installation…
-
10kW FM Transmitter 10000 Watt
10 kW FM Transmitter
10,000 Watts SOLID STATE FM transmitter 87.5 – 108 MHz Range
Broadcast FM transmitter 10KW, serving FM radio stations in many different countries.
Equipped with the latest MOSFET RF technology, the 10kW FM Transmitter features excellent efficiency and compact design.
Two 5KW Amplifiers are combined in a compact and clear modular design. High efficiency of at least 64% independent of output power level. Each RF amplifier has its own power supply, guard circuits and integrated harmonic filter. Each amplifier module is, therefore, selfmonitoring and self-protective Reduced stock of spares and high standardization level through the use of identical modules Easy monitoring and intelligent fault detection system as well as remote control via BITBUS or modem High reliability and optimum price/performance ratio are distinguishing features of the 10K -
-
High power 20kw fm transmitter broadcast equipment
High Power 20kW FM Amplifiers Broadcast Equipment NEW
-
E20000TR 20 kW FM Transmitter
20kW FM Transmitter
Cost-saving, solid state FM transmitter
20 kW Band II FM TRANSMITTER
E20000TR is a solid state transmitter that combines perfomance, reliability, efficiency and easy of servic -
20 KW FM Transmitter High Efficiency
High Power Transmitters for Commercial Radio Stations
-
2.3-2.5GHz Grid Parabolic
2.3-2.5GHz Grid Parabolic High gain parabolic antenna .suited to all microwave studio to transmitter STL link systems. Frequency: 2300-2500 Gain: 24dBi VSWR: <1,5 dB Impedance: 50Ω Polarization: Horizontal / Vertical Max power: 100W Connector: N female Dimension: 60×90 cm Weight: 3,6 kg Several Antenna system models for Radio, TV and Microwave applications and related accessories such as feeder cable, grounding kit, clamps, and others…
-
30 kW Solid State FM Transmitter
30 kW Solid State FM Transmitter 30.000 W solid state FM transmitter FM Transmitter 30000 Watt COMING SOON
-
30kW FM radio broadcast transmitter
30kW FM radio broadcast transmitter Available with RF nominal power of 30000W. The High Power 30 kW FM Transmitter combines a very compact size, costs and maintenance High Power 30kW FM Transmitter Broadcast Equipment coming soon
-
35kW FM radio broadcast transmitter
35kW FM radio broadcast transmitter Discover brand new E/TX-35000-TR 35KW FM Transmitter The new 35kw is realised with technology ICEFET, that allow drastic decrease to sensitive reduction of the consumptions. The 35kW is a system of total digital quality thanks to a diagnostic remote, fast and capillary assistance, low consuptions, duration in the time…
-
-
40kW FM Transmitter High Efficiency
40kW FM Transmitter
The series belongs to the High Power VHF product family of FM Radio Transmitters fully solid state technology air cooled
The ELETEC 40kw is realised with last technology, that allows drastic decrease of the temperature to a sensitive reduction of the consumptions.
ELETEC 40Kw is a system of total quality thanks to a diagnostic remote, fast and capillary assistance, low consumptions, duration in the time and it is
easy to use.
Combining the basic form AMP5000 we have gotten transmitters from 5Kw to 40Kw in configurations from 1 0 to N 1. All the components of the series shared the same characteristics to the RF module, power supply, logics of control, systems of protection, derating, facility of installation and simplicity of setup. The advantages of the module systems are as follows: -
-
-
FM Transmitter 10kW–60kW
FM Transmitter 10kW–60kW 10000W – 60000W HIGH POWER COMING SOON
-
BROADCAST REFLECTIVE ANTENNA 300-360 Mhz
This Reflector antenna with a maximum capacity of 500W and N type connector are made of stainless steel.
The high gain and directivity of this heavy duty broadband antenna are ideal for radiating in the V H F – U H F bands.
All metal parts are electrically grounded. It can be completely disassembled for easy transportation.
-
BROADCAST REFLECTOR ANTENNA 200-250 Mhz
This Reflector antenna with a maximum capacity of 500W and N type connector are made of stainless steel.
The high gain and directivity of this heavy duty broadband antenna are ideal for radiating in the V H F – U H F bands. All metal parts are electrically grounded. It can be completely disassembled for easy transportation.
-
BROADCAST REFLECTOR ANTENNA 380-530 Mhz
This Reflector antenna with a maximum capacity of 500W and N type connector are made of stainless steel.
The high gain and directivity of this heavy duty broadband antenna are ideal for radiating in the V H F – U H F bands.
All metal parts are electrically grounded. It can be completely disassembled for easy transportation.
-
Circulary polarized FM antenna
Circulary polarized FM antenna FM Broadcast Band (87.5 –108 MHz) Omnidirectional antenna circular polarization, very resistant, entirely made of stainless steel Specifications: Freq. range: 87.5 – 108 MHz Impedance: 50 Ohm V.S.W.R. : <1.4:1 Gain: – 1.5 db Bandwidth: 300KHz Connector: « N » Weight: 4 Kg Max power: 500W Polarization: circular Dimensions: 580x350x850 mm
-
COMBINERS STARPOINT
COMBINERS STARPOINT FM STARPOINT, DOUBLE COAXIAL FILTERS COMBINERS Made of aluminum, silvered copper and PTFE. They are composed of two or more cavity filters connected together by rigid lines, so we will have all inputs selective. It is therefore necessary , in order, knowing all the frequencies of use. /402S /2000S /2000S-H /4000S…
-
Radio Broadcasting Equipment
Radio Broadcasting Equipment Broadcast Eletec provides the best selection on equipment for Radio Broadcasting products and Radio Transmittes & Equipments Radio Studio Radio Studio Turnkey solutions Web & Smart Studios Multi-Channel Station Network radio Fly case, the portable radio TV Studio Turnkey solutions Radio Visions Fly case, the portable TV ELETEC Radio/TV Broadcasting Equipment can help you…
-

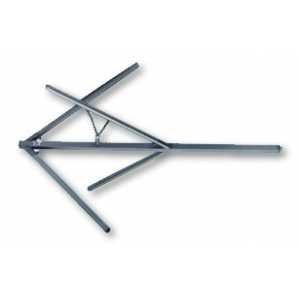

FM Circular Polarized Antenna
wideband FM antenna with a maximum capacity of 5KW and a 7/8 ″ connector is made entirely of aluminum-treated allodyne and is especially recommended for high-power transmitters. They are very strong but light, with PTFE insulation and stainless steel clamps and screws. They are removable in several parts to facilitate shipping.
All metal parts are grounded to avoid potential lightning problems. For proper operation, they should be mounted on a support pole not too large and, if possible, without other antennas or metal structures nearby. This antenna is particularly suitable for urban installations where multiple reflections multipath are a problem and circular polarization dramatically reduces negative effects.
-
5kW FM Power Divider
5kW FM Power Divider Standard models are 2-way, 4-way, 6-way, and 8-way dividers. Others available on request. Simple to install, these power dividers come complete with matching mounting clamps and are ideal for feeding an array of antennas to allow you to increase your coverage area without having to upgrade your transmitter power. FM power…
